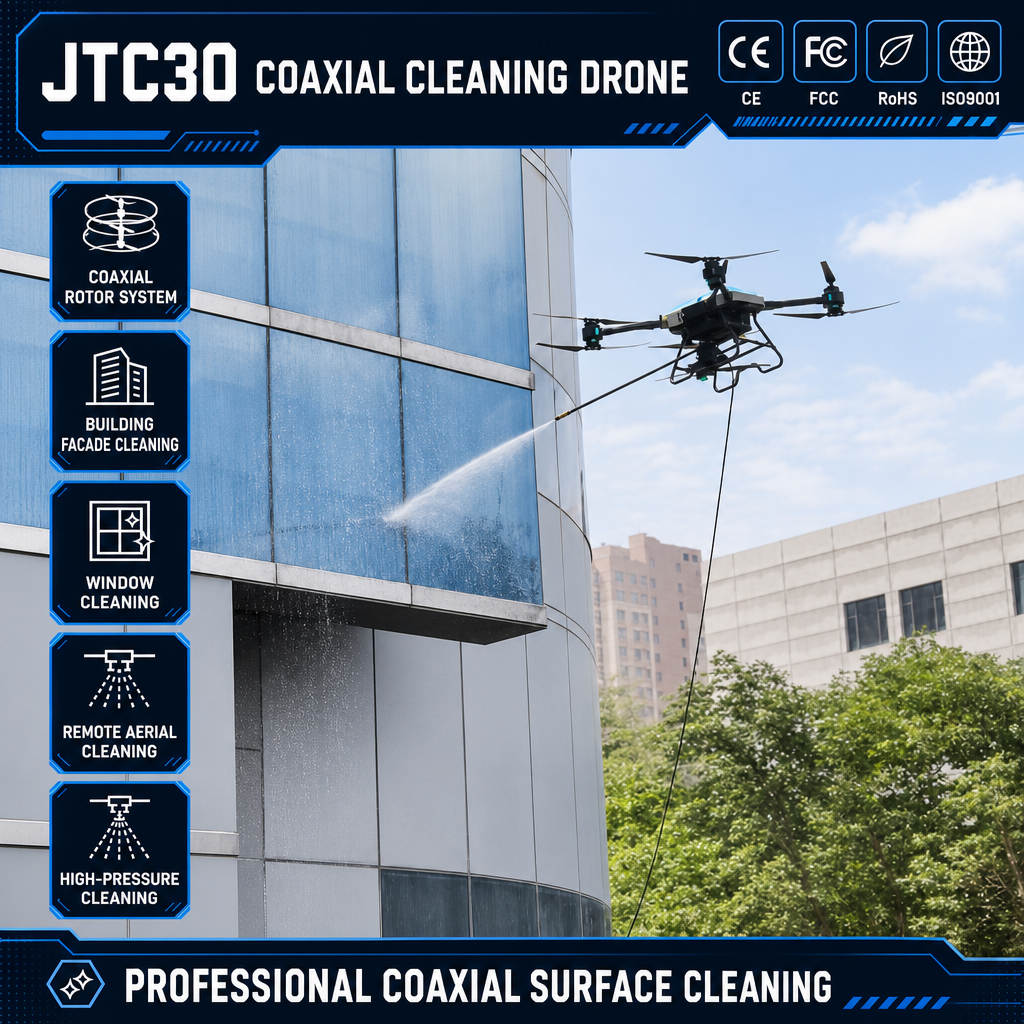

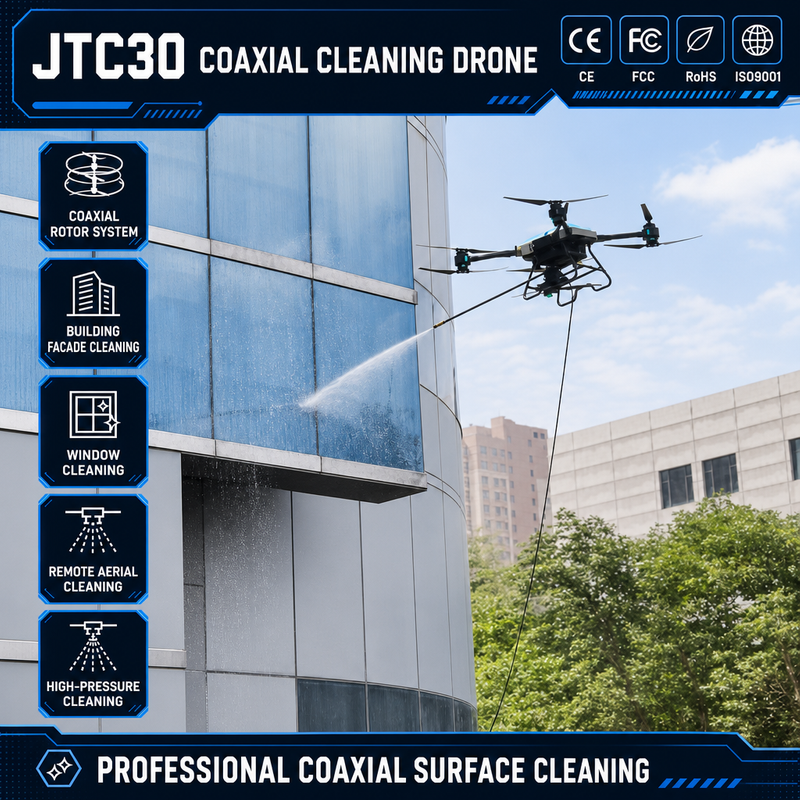

JTC30 Coaxial Dual-Rotor Facade Cleaning Drone | 29MPa High Pressure Autonomous Building Washing Drone

29MPa Ultra-High Pressure
Boasting 29MPa ultra-high pressure output, the JTC30 generates formidable industrial cleaning power to deliver deep, thorough surface decontamination. It achieves comprehensive, professional surface treatment for skyscraper glass curtain walls, effortlessly stripping away stubborn grime, dust and environmental deposits that standard cleaning methods struggle to remove.

Autonomous Mission Intelligence
Powered by autonomous mission intelligence, the drone incorporates sophisticated AI path planning algorithms paired with robust obstacle detection capabilities. This enables safe, hands-free operation throughout the entire cleaning mission, removing the burden of constant manual piloting and lowering human error risks on high-rise work sites.

Advanced RTK Autonomy
Equipped with advanced RTK positioning technology, the JTC30 reaches centimeter-level flight precision. Such exceptional positioning accuracy supports fully independent, repeatable and highly efficient cleaning missions, maintaining consistent flight trajectories and stable cleaning distance along building facades.

Compact Foldable Design
Featuring a compact, foldable airframe, this industrial drone delivers outstanding portability. Its space-saving structure cuts logistics and transportation costs significantly, while supporting fast on-site assembly and deployment. A single operator can complete setup quickly without heavy lifting or specialized transport vehicles.

Elite Industrial-Grade Construction
Built to elite industrial standards, the JTC30 is purpose-engineered to maintain stable flight performance and reliable operation in complex high-rise environments. It guarantees safety and consistent results for long-duration facade maintenance tasks, even when working around tall skyscrapers with turbulent airflow.
Availability:
Quantity:
  • JTC30 coaxial cleaning drone

  • Joyance

The JTC30 coaxial dual‑rotor cleaning drone is engineered for heavy‑duty industrial facade maintenance. Powered by an 8‑motor propulsion system and equipped with mission‑ready autonomous flight capability, it consistently delivers robust high‑altitude cleaning performance.

Fitted with side‑by‑side nozzles for high‑pressure water and foam spraying, the JTC30 supports uninterrupted cleaning operations, eliminating the need to land mid‑task. Its tethered power design enables round‑the‑clock missions with unlimited flight time, while the coaxial airframe maintains exceptional stability amid turbulent airflow surrounding high‑rise buildings.

Boasting IPX6 ingress protection and CE, FCC, RoHS certifications, the JTC30 is a secure, high‑ROI facade cleaning solution tailored for worldwide deployment.


Break away from hazardous, low‑efficiency manual facade washing. Joyance automated aerial cleaning solutions perform up to 110 times faster, while fully safeguarding ground crew personnel. In contrast to the uneven results of manual cleaning, the JTC30 sustains steady industrial pressure to preserve building facades without compromising cleaning power. Safer, more productive and ultra‑reliable, it eliminates traditional insurance liabilities and the risk of surface damage, enabling you to expand your cleaning business backed by Joyance’s professional aerial maintenance standards.

Joyance’s coaxial dual‑rotor design sets a new benchmark for industrial power and flight stability. With counter‑rotating motors mounted on four arms, it achieves 1.8× greater thrust density, offering impressive payload capability within a compact airframe. This mechanical configuration counteracts torque for precise yaw control and creates a uniform downwash to guarantee consistent cleaning quality. Purpose‑engineered for tight working environments, the JTC30 brings heavy‑duty cleaning performance to high‑rises, narrow passages and balcony zones.


It features an integrated dual-nozzle precision system that doubles cleaning efficiency for industrial projects. The matched parallel assemblies consist of black-jet foam nozzles and red high-pressure water nozzles, enabling mid-mission switching between cleaning modes without landing. This proprietary continuous operation workflow combines foam softening treatment and high-pressure rinsing in a single flight, solving the frequent issue where foam dries out prior to rinsing. Independently adjustable flow rates adapt to different levels of grime, helping you maximize ROI with consistent, dependable performance.


The Joyance JTC30 boasts an ultra‑compact design with exceptional agility and portability. At just 13 kg and a folded length of 1600 mm, it easily fits into ordinary car trunks to slash transportation costs. This modular drone shines in confined working spaces, ideal for narrow alleys, balconies and indoor factory settings. It can be deployed by a single operator for fast setup with no extra labour needed. Its excellent close‑range maneuverability enables precise facade cleaning while working near building walls. The JTC30 is your optimal ROI-driven solution for high-rise cleaning projects.


The JTC30 coaxial dual‑rotor cleaning drone comes equipped with intelligent obstacle‑avoidance radar for sophisticated environmental perception. Featuring a high‑precision ranging sensing system covering up to 16 metres, it builds a full 360° safety bubble to reduce collision risks during high‑rise operations. Accurate proximity control maintains steady cleaning pressure on glass curtain walls while protecting your valuable equipment investment. Fully compliant with global standards, the JTC30 provides superior safety and reliability for skyscraper maintenance projects.

The JTC30’s one‑touch control system improves operational efficiency with intuitive flight and spray management. Simply tap to toggle between water spraying and foam output, enabling targeted application and eliminating waste of consumables. Fine-tuned control maximizes operational uptime and greatly cuts running costs. By simplifying complicated high‑rise maintenance workflows, the JTC30 presents a smarter, more cost‑effective solution for industrial facade cleaning, engineered by Joyance’s expert R&D team.


JTC30 coaxial Cleaning Drone Technical Specifications

Application

Windows/Facade/building/exterial/industrial tank/wind turbine, etc.

Fly
parameters

Fly altitude

Max 280m

Cleaning width

50mm

Cleaning speed

1m/s

Effective distance between nozzle to the building

2-2.5 m

Spray flow

14L/m

Wind resistance

14m/s

Waterproof Level

IP56

Fly time
(battery duration)

Fly height

Fly time

Remaining battery

empty

51 min

25%

30m

42 min

25%

60m

39 min

25%

100m

36 min

25%

150m

30 min

25%

Cleaning efficiency

Windows cleaning

1000~1500 sqm/hour

Facade cleaning

1700~2200 sqm/hour

Configuration

power system

X8*8, IP68

Propeller

3411, carbon fiber

Frame material

50mm carbon fiber, 50mm aviation aluminum alloy

Battery

14S 36000mAh*2, ≥1000 cycles, 6.35kg/pc

Battery charger

3000W,charging time: 30min (30%~95%)

Foam maker

For cleaning detergent

Remote Controller

5.5''screen,1000mAh battery, 6-20 hours

FPV

1080p camera, resolution 1280*720

Water pressure

Electric pump:4100psi (28MPa, 280 bar)
Gasoline pump:3200psi (22MPa, 220 bar) ,7.5HP

Water pipe

160m anti-explosion pipe,16KG,5800PSI,dia: 14mm*8mm

Collission warning

obstacle radar,keep 2m safe distance

Spray boom

steel material,0.5m-1.5m length,0-180°rotation

Spray nozzle

Brass nozzle, 0°, 15°, 25°, 40° adjustment

Weight

Drone weight

13KG(without battery)

25.7KG (with 2 batteries)

Take off weight

55.7kg

Drone Size

Unfold size

W2.25m x L1.87m x H0.49m

Folded size

W1.60m x L0.86m x H0.49m

Wheelbase

1.47m

Packing

Aviation aluminum box

Waterproof and fireproof
