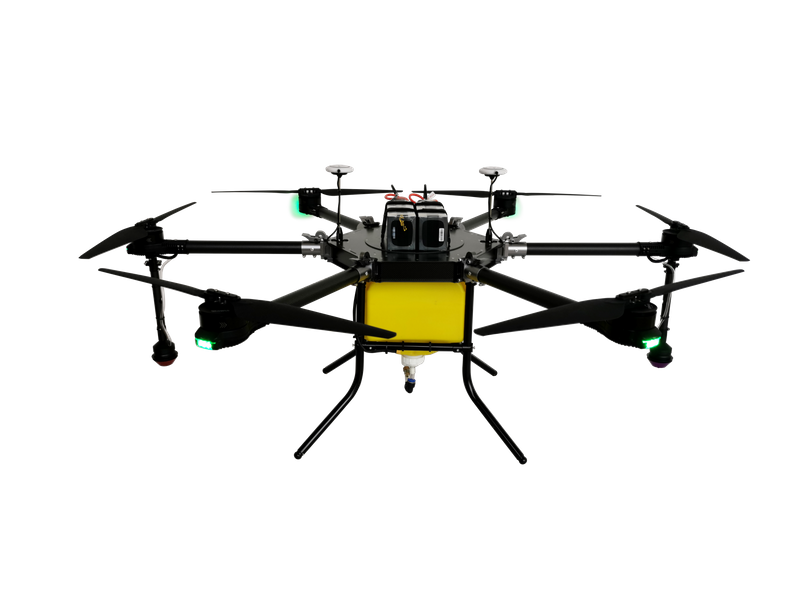

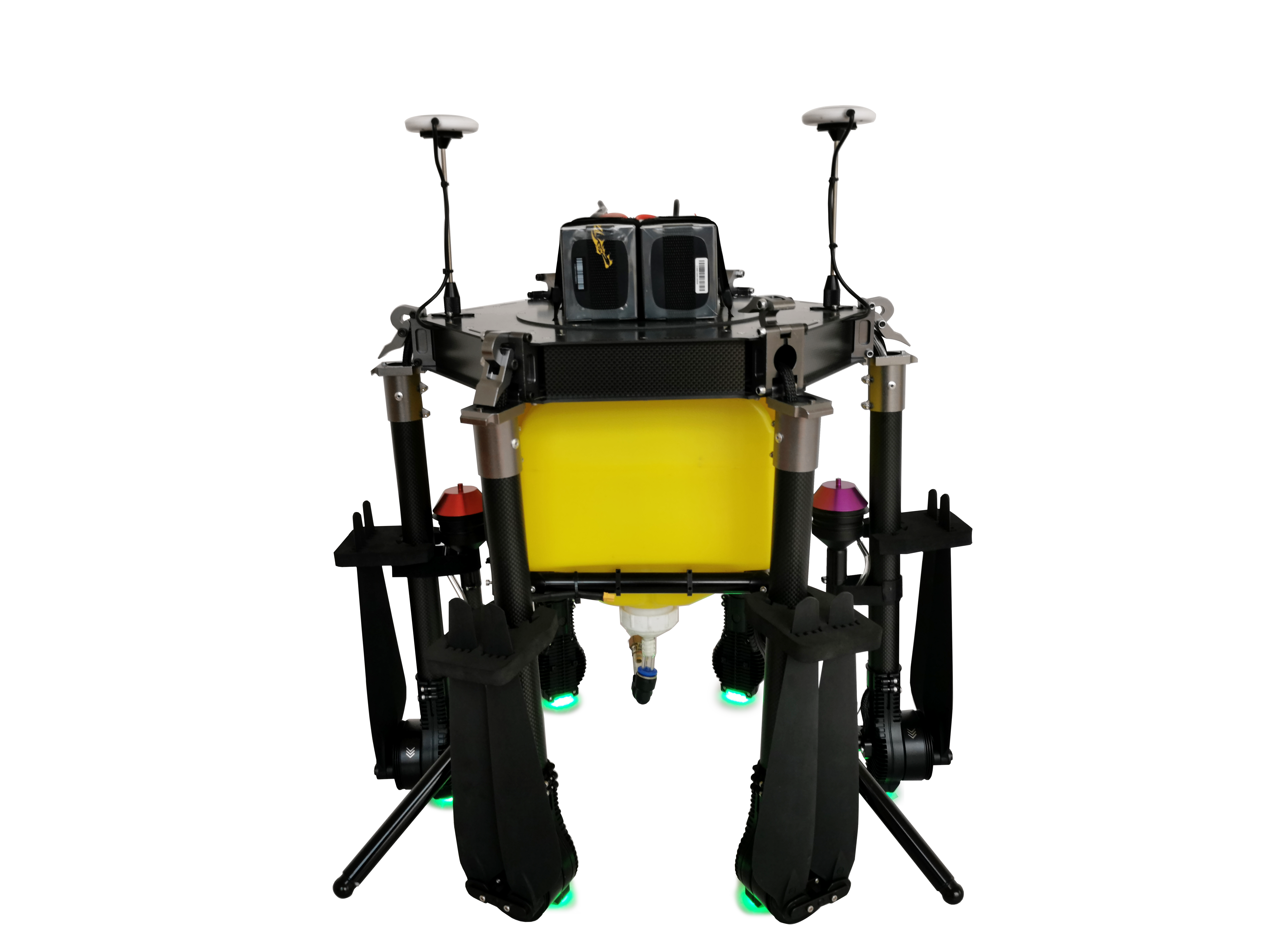

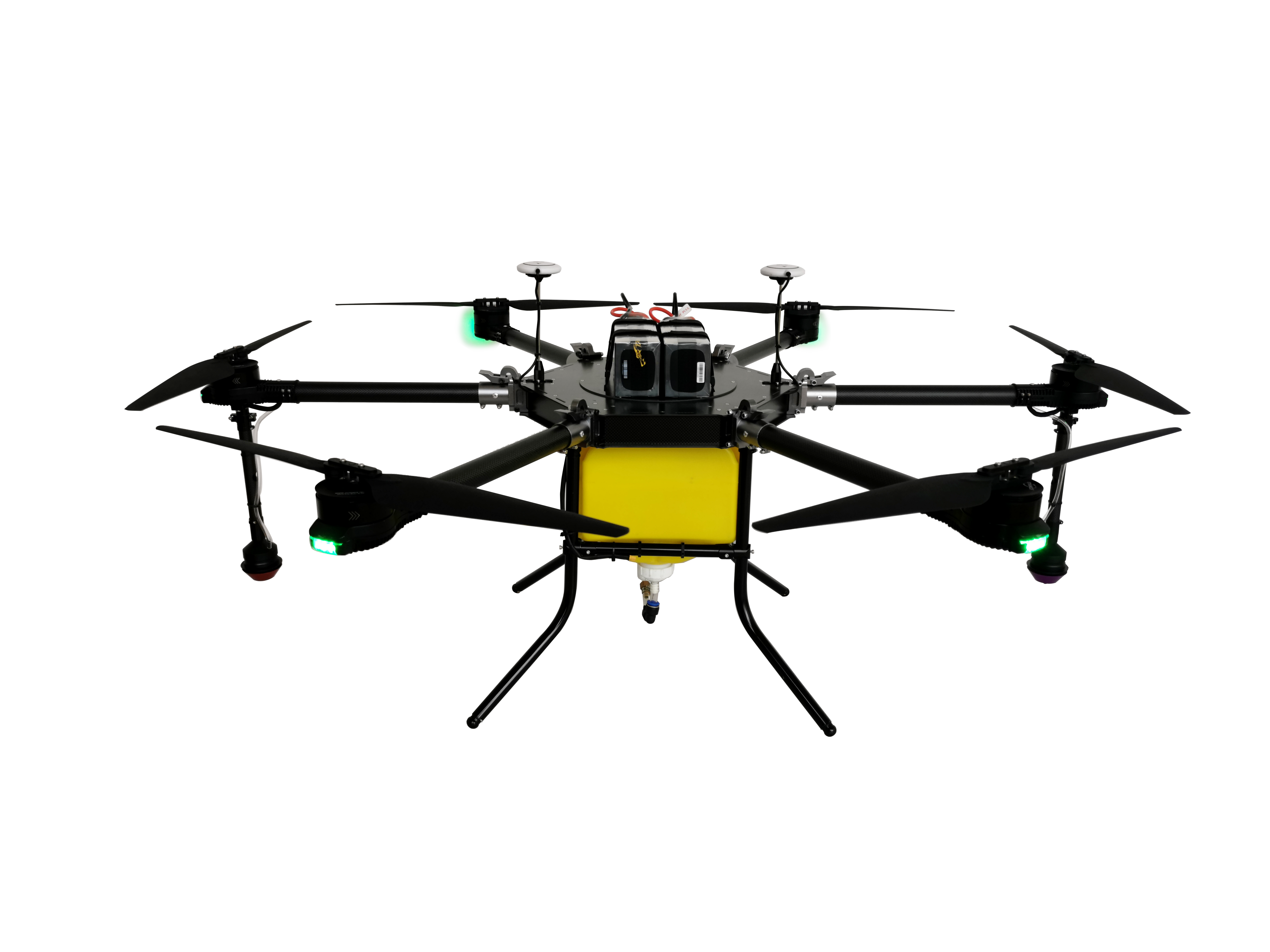

JT20 Agricultural Sprayer Drone
2 pcs centrifugal nozzles, which has better atomization and penetration effect, so 20L sprayer drone has better spraying effect.
| Quantity: | |
|---|---|
-
JT20
-
JOYANCE
JOYANCE JT20 agricultural spraying drone
| Model | JT20 | |
| Pesticide Tank | 20L | |
| Net Weight | 10kg | |
| Take-off Weight | 33kg | |
| Flying Time | 10~15min | |
| Flying Radius | 0~1000m | |
| Flying Height | 0~30m | |
| Flying Speed | 0~12m/s | |
| Work Temperature | -10~70°C | |
| Work Humidity | 0~90% | |
| Spray Speed | 0~8m/s | |
| Spray Width/Nozzle No. | >3.5~5.5m / 2 Centrifugal Nozzles | |
| Spray Flow | 1~1.5L/min | |
| Spray Efficiency | 8~10Ha/Hr | |
| Flying Downward Airflow | 4~15m/s | |
| Wind Resistance | 10m/s | |
| Machine Size | Spread Size | W1.3m x L1.3m x H0.45m |
| Folded Size | W0.6m x L0.6m x H0.51m | |
| Power System | Motor | Brushless |
| Propeller | Carbon Fiber | |
| ESC | Rapid Throttle Response | |
| Flight Control | K++V2 | |
| Remote Controller | Joyance Datalink H12 RC | |
| Battery / Quantity | 6S 22000mAh / 2pc | |
| Adapter + Charger | 8-Channel Charger 1200W | |
| Packing Case | Aluminum Case | |
| Toolkit | Maintenance/Repair Tools | |
JOYANCE JT20 agricultural spraying drone
| Model | JT20 | |
| Pesticide Tank | 20L | |
| Net Weight | 10kg | |
| Take-off Weight | 33kg | |
| Flying Time | 10~15min | |
| Flying Radius | 0~1000m | |
| Flying Height | 0~30m | |
| Flying Speed | 0~12m/s | |
| Work Temperature | -10~70°C | |
| Work Humidity | 0~90% | |
| Spray Speed | 0~8m/s | |
| Spray Width/Nozzle No. | >3.5~5.5m / 2 Centrifugal Nozzles | |
| Spray Flow | 1~1.5L/min | |
| Spray Efficiency | 8~10Ha/Hr | |
| Flying Downward Airflow | 4~15m/s | |
| Wind Resistance | 10m/s | |
| Machine Size | Spread Size | W1.3m x L1.3m x H0.45m |
| Folded Size | W0.6m x L0.6m x H0.51m | |
| Power System | Motor | Brushless |
| Propeller | Carbon Fiber | |
| ESC | Rapid Throttle Response | |
| Flight Control | K++V2 | |
| Remote Controller | Joyance Datalink H12 RC | |
| Battery / Quantity | 6S 22000mAh / 2pc | |
| Adapter + Charger | 8-Channel Charger 1200W | |
| Packing Case | Aluminum Case | |
| Toolkit | Maintenance/Repair Tools | |
