Joyance JT100L Multifunctional Agricultural Drone Product Introduction

The JT100 agricultural drone is a highly efficient operational tool integrating spraying, sowing, and lifting functions. It is suitable for various agricultural scenarios such as fields and orchards, simplifying operational processes with its powerful performance and intelligent design.

Power and Energy System: A single motor unit delivers a maximum thrust of 76kg, with a thrust-to-weight ratio of 2.2. Combined with a 62-inch carbon fiber propeller and a 350A high-performance ESC, the total thrust exceeds 300kg. The 18S 30000mAh intelligent battery exhibits less than 7% battery degradation after 1500 cycles. Paired with a 9000W intelligent charger, it can fast charge from 25% to 95% in just 10 minutes and 25 seconds. An active + passive cooling system ensures the temperature remains below 65℃.

Highly efficient and precise operation system: The spraying system is equipped with centrifugal nozzles, with a maximum flow rate of 30L/min per unit, and up to 40L/min with four nozzles. The droplet size is adjustable from 50-500μm and drip-proof. The seeding system has a maximum load capacity of 80kg and a delivery rate of 300kg/min, supporting particles from 0.5-10mm.

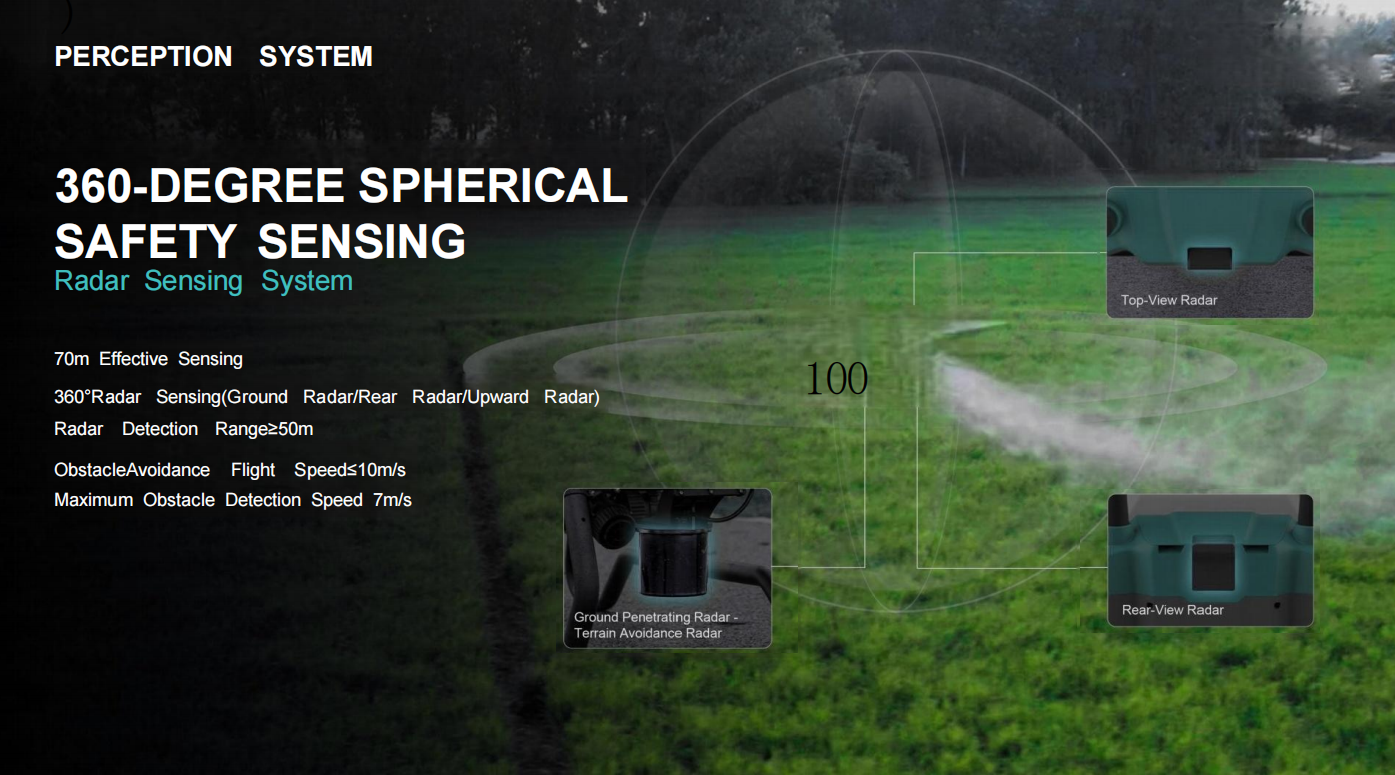

Comprehensive intelligent and safety features: The self-developed AVIONICS 5.0 flight control system boasts IP67 protection and multiple redundancy designs to ensure flight safety. The 360° radar sensing system has a detection range of ≥50m and supports obstacle avoidance. It comes with an AirPilot 3.5 remote controller, a 2000-meter image transmission range + 4G module, and a 6-inch high-definition screen for convenient operation.

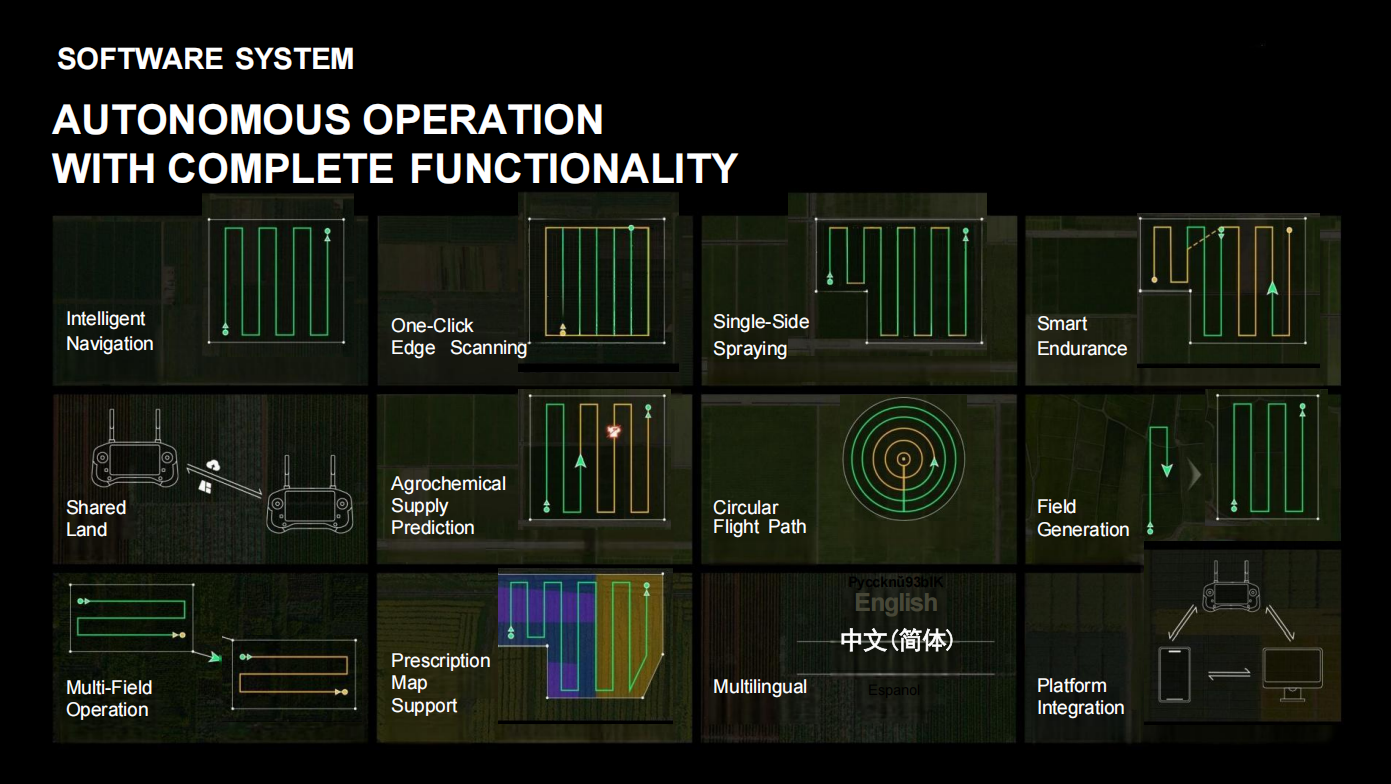

The fuselage features a practical and durable design: a four-axis folding structure with unfolded dimensions of 3305mm×3577mm×850mm and folded dimensions of only 1270mm×880mm×880mm. The reinforced fuselage and energy-absorbing landing gear can withstand a 1-meter drop. The vertically mounted power distribution board facilitates maintenance. It supports a multi-language operating platform, and functions such as autonomous navigation and edge scanning can be achieved with a single button.
