JTC50 Industrial PV Cleaning Drone｜RTK Autonomy, 0‑90° Pitch Control & 1800 PSI Adjustable Pressure

JTC50 Industrial PV Cleaning Drone – 0-90° Pitch Control & 1800 PSI Adjustable Pressure for Adaptive Solar Panel Maintenance

Share to:

JTC50 Industrial PV Cleaning Drone – 0-90° Pitch Control & 1800 PSI Adjustable Pressure for Adaptive Solar Panel Maintenance

Intelligent Autonomous Mission
Equipped with cutting‑edge AI‑powered path‑planning and multi‑directional obstacle‑avoidance perception system, the drone is capable of executing complex high‑altitude cleaning tasks with enhanced operational safety. It supports hands‑free autonomous operation, which greatly reduces manual pilot workload and human‑error risks during long‑hour field missions, delivering stable and reliable performance in dynamic real‑world working environments.

Advanced RTK Autonomy

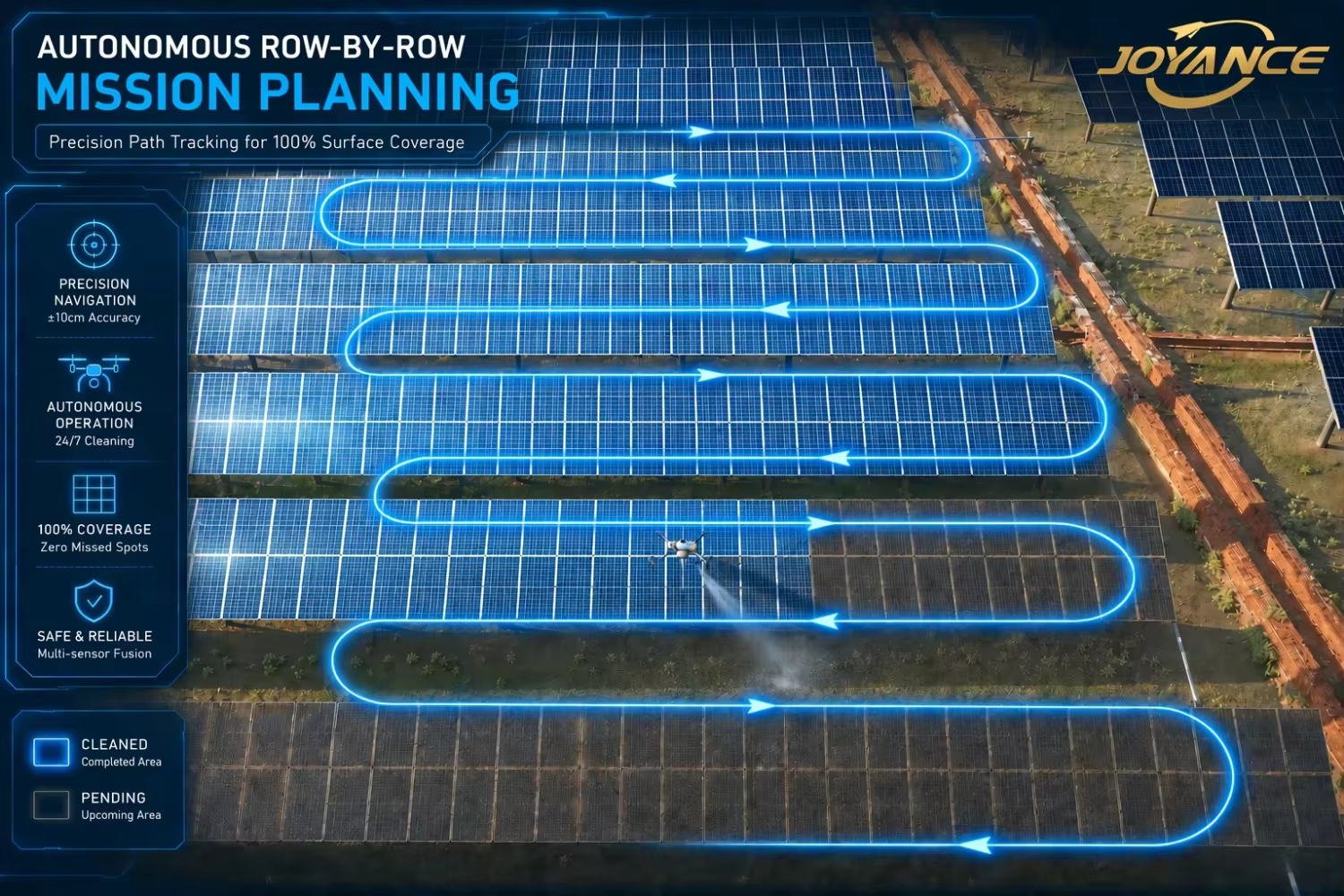

Built‑in high‑precision RTK positioning delivers centimeter‑level flight accuracy. It enables fully autonomous, highly‑efficient mission execution across large‑scale solar panel arrays, building facades and extended industrial sites. Consistent positioning stability prevents drifting, minimizes missed or repeated cleaning zones, and significantly boosts overall site throughput without constant manual joystick adjustments.

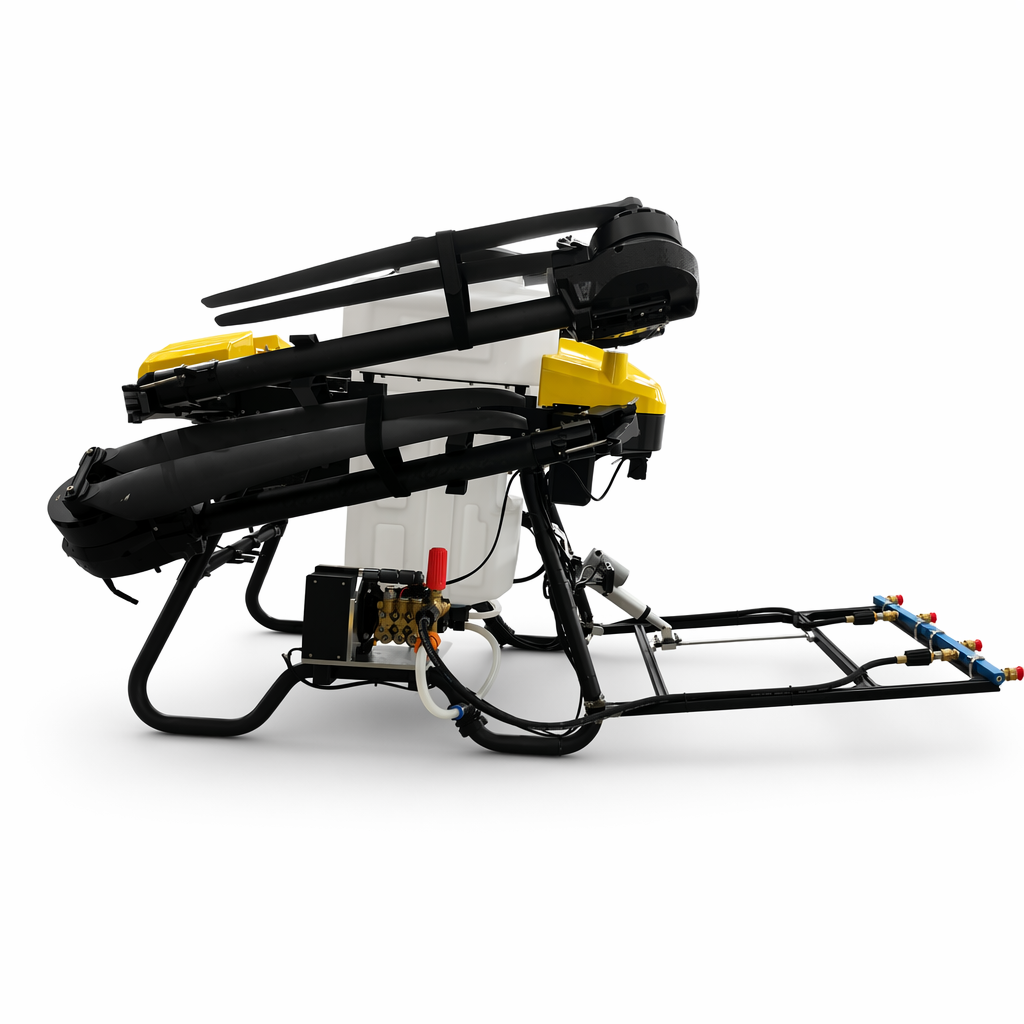

Compact Foldable Design
Featuring a highly‑portable foldable frame structure, it effectively cuts down overall packaging dimensions and weight. This design brings tangible savings on international freight and local transportation costs. Field deployment becomes fast and straightforward; operators can finish assembly and pre‑flight setup within minutes, ideal for frequently moving between multiple job sites.

Elite‑Grade Industrial Construction
Engineered with premium 3K carbon‑fiber airframe, this industrial‑grade platform offers outstanding structural rigidity, vibration suppression and durability. It is purpose‑built to endure demanding conditions for high‑rise facade maintenance and heavy‑duty industrial cleaning assignments, ensuring stable flight performance and long service life under rigorous commercial operation cycles.

Versatile Dual‑Task Architecture
Thanks to its flexible dual‑task modular architecture, users can seamlessly convert this agricultural‑grade working drone into a professional high‑altitude cleaning asset by swapping functional payloads. This innovative capability maximizes your equipment capital utilization, allowing one single platform to handle both agricultural spraying and commercial cleaning projects and delivering faster return‑on‑investment for your business.

Availability:

Quantity:



Inquire Add to Basket

Model:
JTC50
Brand:
Joyance

Product Description

1. Dual-Purpose Design

One drone for agricultural spraying + solar panel cleaning

Quick-swap payload system for fast mission switching

2. 0–90° Adjustable Nozzle

Spray angle adjusts from horizontal to fully vertical

Perfect for sloped panels, tall crops, and varied terrains

3. Fully Automatic Operation

One-tap autonomous mission execution

Pre-set routes with automatic flow control

4. Obstacle Avoidance

detection sensor

Safely navigates around poles, wires, trees, and equipment

5. Terrain Following

Auto-altitude adjustment over uneven ground

Maintains consistent distance to crops or panels

6. FPV Live View

Real-time HD video streaming

Allows remote inspection and manual override when needed

7. High-Pressure Cleaning (1800 PSI)

Adjustable pressure – gentle on glass, tough on dirt

Effective for dust, bird droppings, and stubborn residue

8. Durable & Weatherproof

IP56 waterproof rating

Wind resistant up to 14 m/s

Reliable in farms and dusty solar fields

9. Large Coverage

Covers vast fields and utility-scale solar farms efficiently

Joyance JTC professional solar‑panel cleaning drone redefines photovoltaic maintenance, delivering 50‑fold higher efficiency versus manual labour, with a throughput up to 1000 m² per hour for large‑scale projects and compelling return‑on‑investment. Powered by full autonomous mission intelligence and AI‑driven path‑planning, it guarantees 100% consistent cleaning coverage across solar arrays.

Its versatile dual‑task architecture enables seamless conversion between agricultural spraying and high‑altitude cleaning operations. Built around a compact carbon‑fiber airframe, the unit fits easily inside a standard car trunk for convenient transit. Equipped with fine‑tuned precision actuators and adjustable working offset, it achieves full 100% surface coverage, maximizing year‑round power generation and industrial‑grade operational performance.

Leveraging the dedicated conversion kit, you can unlock extra value from your existing JT50 agricultural drone beyond the short spraying season. The kit transforms your JT50 platform into a professional JTC solar‑cleaning system, granting you immediate access to the fast‑growing solar‑maintenance market. Maximize your asset utilization, sustain revenue streams all‑year‑round, and diversify your drone service business into renewable‑energy sectors. No more idle equipment sitting unused; instead, drive 365‑day profit growth and sustainable operational returns.

The JTC solar‑panel cleaning drone reshapes photovoltaic site maintenance with 50‑times efficiency gains over manual work. This automated solution eliminates fall‑from‑height hazards and excessive labour costs via precision hover‑cleaning and safe stand‑off operation. Where conventional cleaning methods struggle with complex site accessibility and incomplete coverage, the JTC drone delivers fast, high‑quality results to maximize solar‑farm ROI. Purpose‑built for professional service providers, it turns photovoltaic maintenance into a profitable, highly‑scalable business model.

The system features freely adjustable water pressure up to 1800 PSI. Operators can tune hydraulic output to match diverse solar‑panel surface conditions. Regulated water flow delivers effective stain removal while safeguarding the panels’ anti‑reflective coating against destructive impact, enabling precise, gentle cycles ideal for routine PV‑array maintenance.

Fitted with a professional lifting module supporting 0‑90° dynamic pitch control, the JTC cleaning drone ensures complete 100% surface coverage. It adapts to every panel tilt angle and maintains a perfectly vertical spray trajectory, maximizing the impact of its 1800 PSI high‑pressure jet to strip stubborn accumulated contaminants. Its foldable, agile construction supports compact transportation and rapid on‑site deployment, granting access to hard‑to‑reach edges and narrow inter‑panel gaps.

Scale up your operational efficiency with Joyance’s elite C5‑certified photovoltaic cleaning solution for superior productivity and ROI. Joyance Autonomous Mission Intelligence lowers the barrier for complex drone operations, turning it into a scalable production tool accessible to ordinary staff. Removing the dependency on highly‑skilled professional pilots, it enables fast workforce onboarding and intuitive, straightforward control. Built‑in intelligent safety failsafes including one‑key return‑to‑home and AI‑powered route‑planning deliver consistent, standardized service quality. Shift from single‑operator single‑drone assignments toward multi‑drone fleet management, boosting labour productivity and driving full‑year profitable growth.

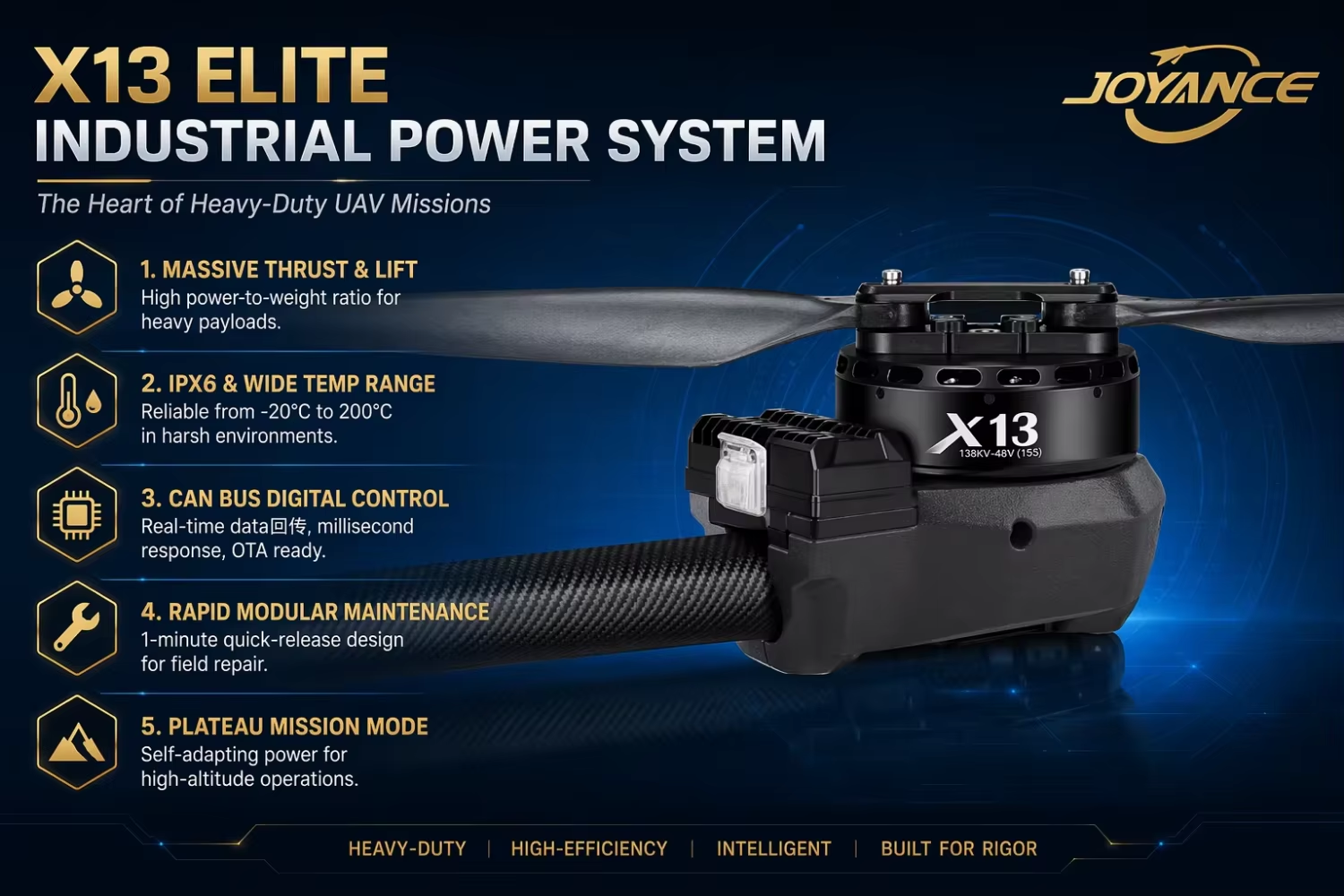

The X13 Elite power system is engineered for the most demanding heavy‑duty industrial drone missions. It delivers massive thrust paired with an outstanding power‑to‑weight ratio, offering reliable lift capacity for substantial payloads. Designed for rigorous real‑world deployment, it carries an IPX6 environmental rating and reliably operates across harsh temperatures ranging from ‑20 °C to 200 °C. CAN‑bus digital control provides real‑time data feedback with millisecond‑level response. Adaptive platform modes are supported alongside a 1‑minute quick‑release design for swift field servicing and maximized uptime.

JTC50 Cleaning Drone Technical Specifications
Application	Solar Panel/Roof Cleaning, etc.
Fly parameters	Fly altitude	up to 300m
	Cleaning width	1m
	Cleaning speed	1m/s
	Spray flow	Max 9.5L/Min, adjustable
	Wind resistance	10 m/s
	Waterproof Level	IP56
	Fly time (battery duration)	6~10 Minutes
Compared		Manual	Drone
	Cleaning effect	Dirt Residue Rate 15%-20%	Dirt Residue Rate <5%
	Cleaning efficiency	100-300sqm/hour	500~1000 sqm/tank 3000~6000 sqm/hour
	Water consumption	3-5 L/m²	0.5-1 L/m²
	Security	Fall hazards, high injury claims	Zero fall hazards
Cleaning Guide	Agent Specs	PH: 6.5-7.5 (neutral) Chlorine-free, no abrasive particles
	Cleaning frequency	Dusty areas: 15-20 days/time; Normal areas: 30-45 days/time
Configuration	Smart battery	18S 30000mAh, ≥1000 cycles
	Battery charger	7200W，charging time: 13min (30%~95%)
	Remote Controller	7'' screen
	FPV camera	1080p, 160 degrees adjustable
	App	Plan autonomous flight mission, multiple language
	LED light	night operation
	Weight sensor*4	Tank empty warning, real time detection
	Water pressure	Max 1800psi (2 pumps). 50psi~1800psi adjustable
	Collission warning	Front obstacle radar & terrain following radar
	Spray nozzle	Adjustable vertical angle, 4 nozzles
	Water pipe	lenght：20m~160 m ；1/2 (16mm outer, 12mm inner)
Weight	Drone weight	55 KG (without battery)
		68.2 KG (with battery)
	Max take off weight	118.2 KG
Drone Size	Spread size	L3.10m x W3.07m xH0.87m
	Folded size	L1.5m x W0.9m x H0.9m
Packing	Aviation aluminum box	Waterproof and fireproof
