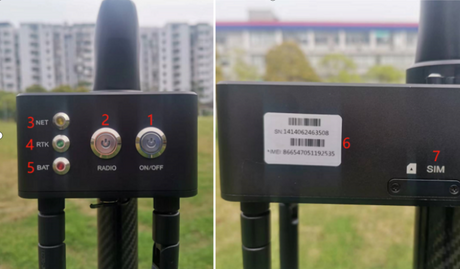

Description of each port

1.ON/OFF：The equipment switch must be turned on when in use;

2.RADIO：The radio function switch must be turned on when using the radio RTK;

3.NET：The network signal indicator will flash yellow when the network is smooth;

4.RTK：The signal indicator light flashes at a faster frequency when the BTS RTK is positioned;

5.BAT：Battery warning light, when the equipment is under low voltage, the red light will be on;

6.SN code：The equipment number must be available when using the network base station. It must be kept and not lost. The matching security code is also available (if you don’t know, you can consult JIYI technician, and you need to use the equipment Sn number to query);

7.SIM：The card slot of the mobile phone traffic card, and the network base station needs to use the network traffic;

8.4G：External antenna of the traffic card to collect network signals;

9.DC 12V ：The charging socket of the device, please use the standard charger for charging;

10.RAIDO：The radio antenna is used to transmit the positioning information of the base station to the radio RTK at the sky end;

11.Antenna：The satellite antenna of the equipment is used to search for satellite signals. When using the equipment, it is necessary to raise the equipment without blocking;

Function

The functions are divided into two parts: radio base station and network base station

Service time: more than 20 hours

Note:

During use, the location of the base station cannot be moved;

After moving the base station position, it needs to be re-positioned;

After the base station is set up, use the aircraft (with RTK) or RTK inker to collect the operation area. The base station must be placed in the same position (special position) every time you work;

If you can’t remember the location of the base station, please add a reference point every time you collect the operation area (please check the APP manual);

Radio Base Station

Suitable working environment

1.Tasks requiring high-precision positioning;

2.In foreign countries, only base stations can be used to use sky terminal RTK;

3.RTK base stations are required in areas where the Qian xun network does not exist;

4.Coverage: About 2km;

Use process

1、Set up a base station in a high and open environment;

2、The antenna of the base station should also be as high as possible to better receive satellite signals and send positioning data to the aircraft;

3、Turn on the device switch and turn on the radio switch at the same time;

4、Wait for 3-5 minutes, the RTK light will flash quickly, and the radio switch will also flash slowly;

5、After the RTK light and radio switch light flash stably, it indicates that the BTS has been positioned;

6、After the base station is located, the aircraft with radio RTK can be used for operational flight;

Network Base Station

一、Suitable working environment

1、Tasks requiring high-precision positioning；

2、Areas with poor Qianxun location information but stable mobile network data in China；

3、When the domestic sky terminal RTK or RTK Dotter is in arrears, it can be used with the network base station；

4、Coverage: about 20km；

Note：

1、When using the network base station function, the flight defense app should always have network data；

2、The network base station needs to insert a mobile traffic card. The card insertion method is shown in the following figure；
